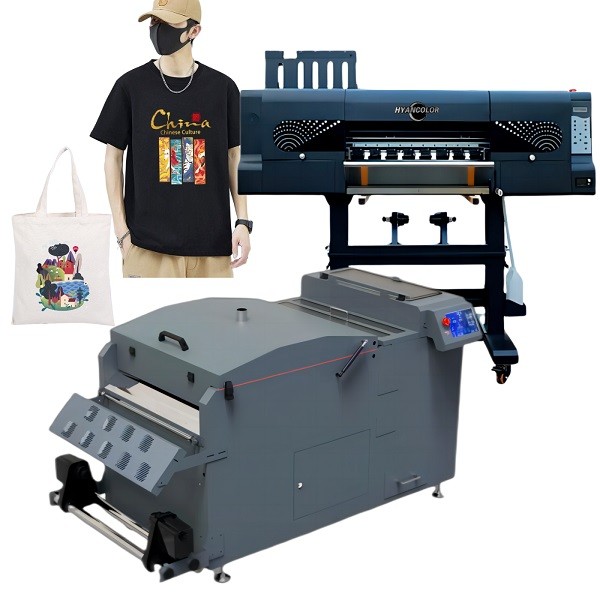

60cm DTF Garment printer HYL-E602

Features

THK high-precision mute rail.

Stable bulk system ensures amazing printing speed.

High-quality hot-melt powder, can be used repeatedly.

Efficient powder shaking device, powder shaking is clean.

Flip top powder box, simple operation, convenient to add powder.

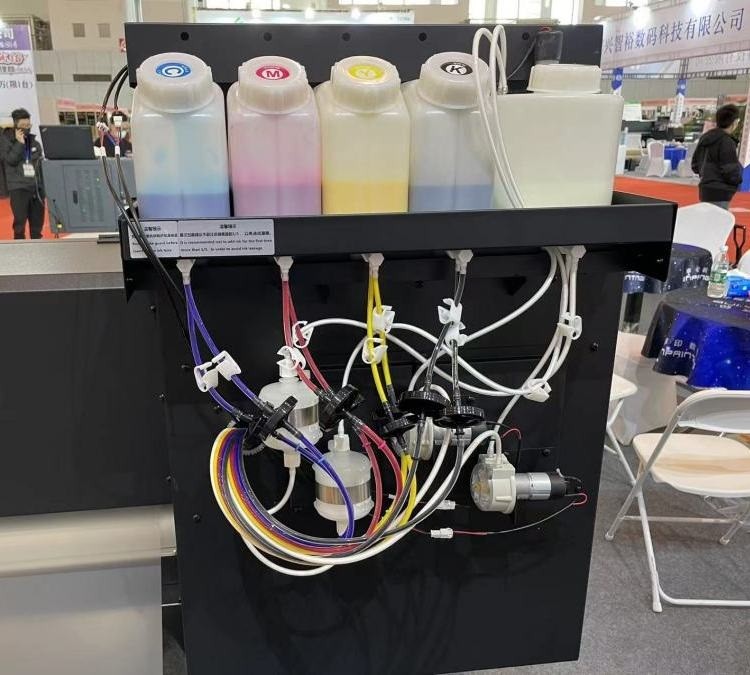

External power supply， intelligent rolling system.

Working Process

Working Process Videos

▼ Design Pattern

Use photoshop, illustrator or other software to design your pattern.

Adjust the printer parameters in the RIP software and use our printer and ink to print your pattern.

Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.

Technical Specifications

Digital Printing Machine
Model		HYL-E602
Print Head		2PCS I1600&I3200 Print Heads Optional
Printing Technology		Piezoelectric Inkjet
Acceptable Media	Width	620 mm
Acceptable Media	Thickness	Maximum 39 mil(1 mm)
Printing Width		600 mm
Ink Cartridges	Type	Transfer Pigment Ink
	Capacity	Continual Ink Supply System ( 220ML )
	Color	CMYK + W
Applicable Medium		Transfer film
Color Manage		ICC or density curve
Media Heating System		Powder & color fixing machine
Interface		RJ-45/LAN
RIP Software		Main top
Power Supply		50HZ/60HZ,220V/110V/10A
Environment	Temperature	22℃ to 28℃
Environment	Humidity	40% to 70%
Printer Dimensions(With Stand)		L1620mmW620mmH1280mm
Packing Dimensions		L1700mmW700MMH720mm
Weight		G.W : 230kg N.W :180kg

Shaking Powder and Color Fix Machine
Model	D650
Media Width	0-600mm
Applicable Medium	Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder Control	Powder shake control, powder control, powder direction and volume control
Heating & Drying Function	Multi-stage heating system, drying, cold air fan function
Rewind Function	Automatic induction winding
Electrical Parameters	Rated Voltage: 220V Rated Current: 20A
Electrical Parameters	Rated Power: 3.42KW Power Consumption: 1KW-2.5KW
Packing Size & Weight	Standard with 2heads : 1800* 1130* 1150mm
Packing Size & Weight	G.W: 260kg N.W: 180kg
