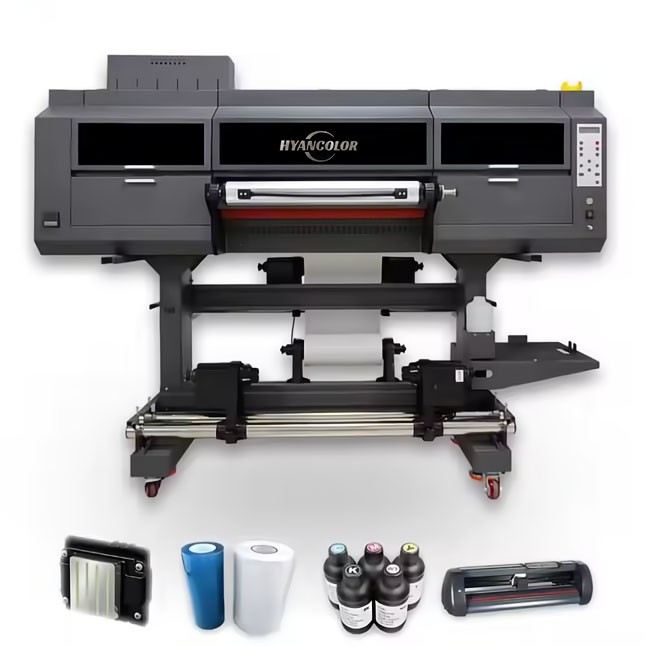

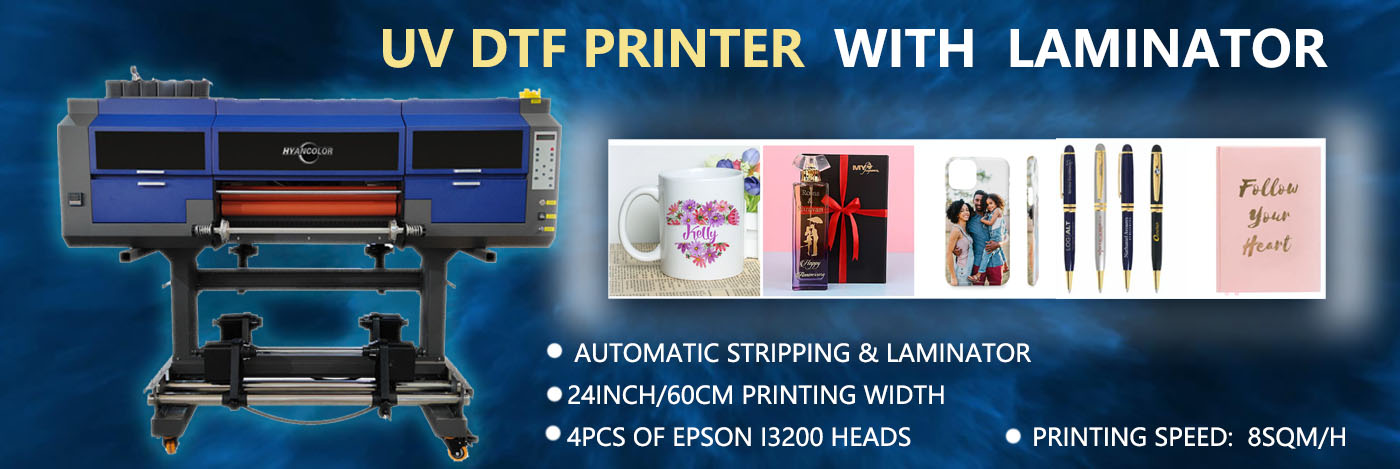

600 UV DTF Printer HYL-T603UV


Technical Specifications

60cm DTF printer HYL-T603UV
Model
HYL-T603UV
Print Head
3pcs I1600&I3200 Print Heads Optional
Printing Technology
Piezoelectric Inkjet
Acceptable Media Width 600 mm
Thickness 1.5~6mm
Printing Width
700 mm
Ink Cartridges Type UV led curing inks
Capacity Continual Ink Supply System ( 1.8L )
Color White+KCMY+Varnish
Applicable Medium
DTF UV film
Color Manage
ICC or density curve
Media Heating System
Powder & color fixing machine
Printing speed
4pass：10 ㎡/h，6pass：8 ㎡/h，8pass：6 ㎡/h
RIP Software
Maintop/PP
Power Supply
50HZ/60HZ,220V/110V/10A
Environment Temperature Temperature: 20-35℃Humidity: 35-70% RH (non-condensing)
Operating Noise: ≤80dB
Humidity 35% to 70%
Printer Dimensions(With Stand)
1900*850*1620mm
Packing Dimensions
2440*1100*850mm
Weight
G.W : 330kg N.W :260kg



Features


q1-1920-1920

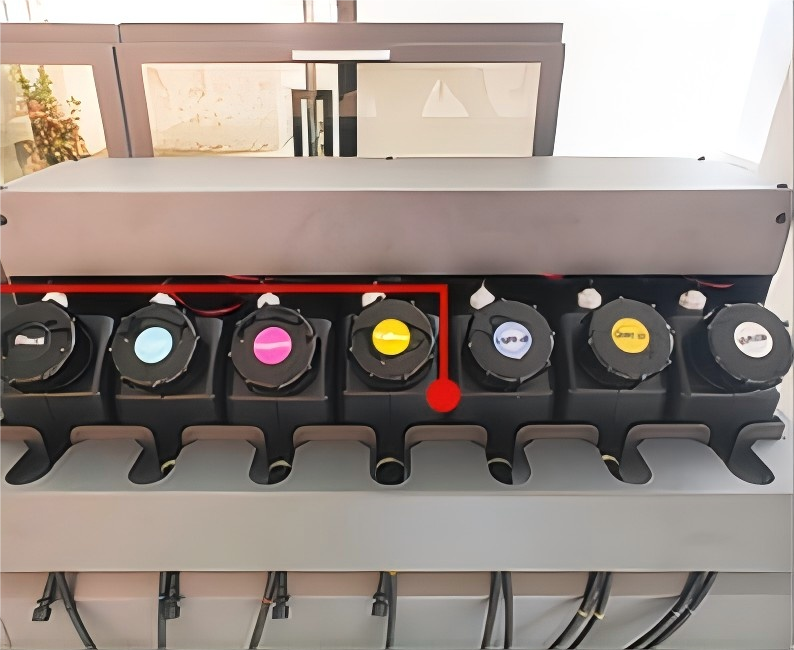

    Large-capacity ink cartridges
             With ink shortage alarm and            white ink stirring functions

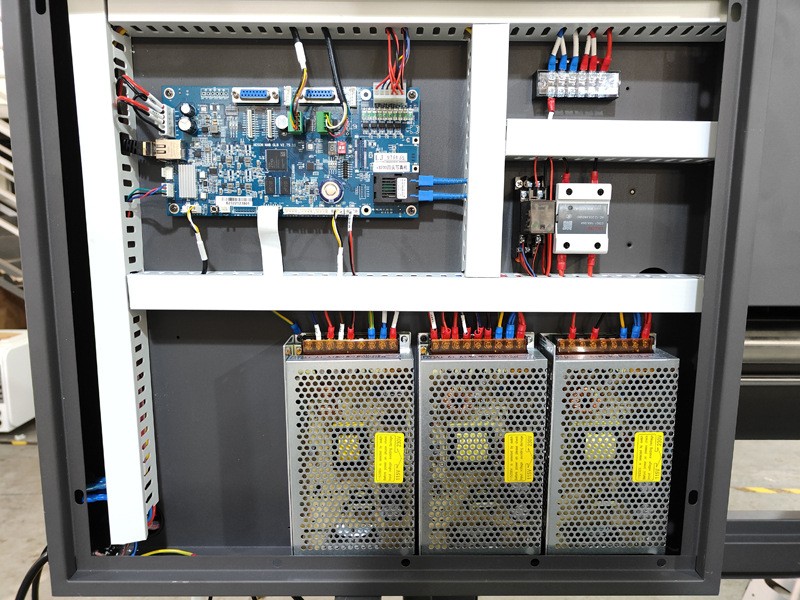

Honson controller board
Hoson board can achieve faster speed and higher precision.

q3-1920-1920

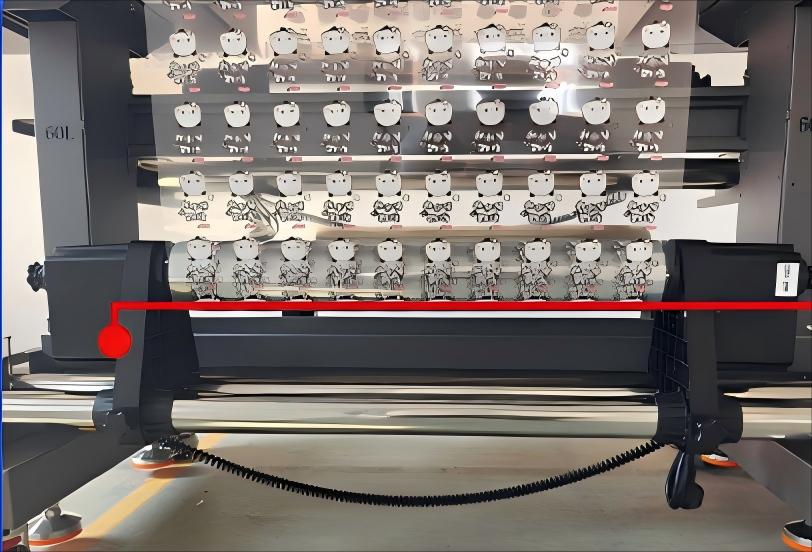

Dual-power paper take-up system Ensures flatter paper stacking without deviation.


2-1920-1920

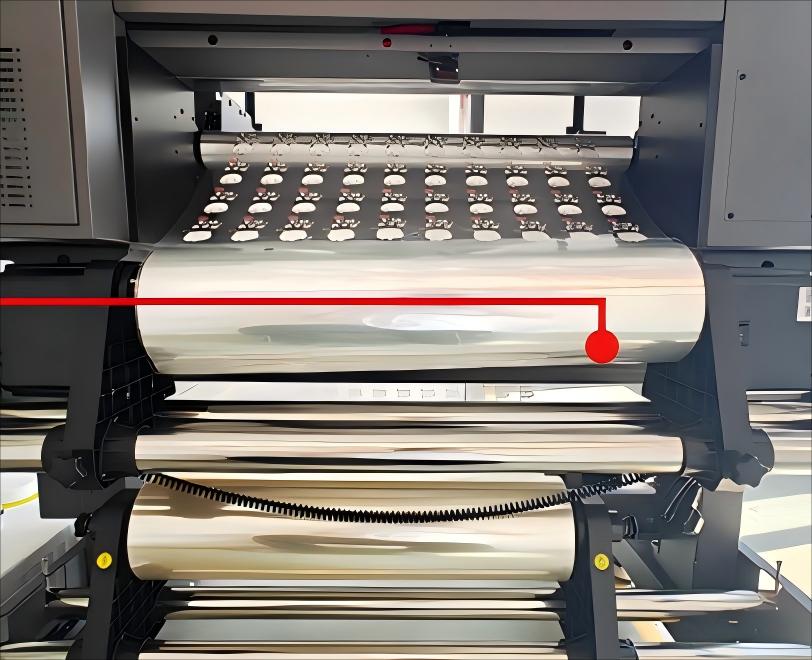

Dual-power waste film collection system Ensures smooth waste film recovery and improves printing efficiency.

3-1920-1920

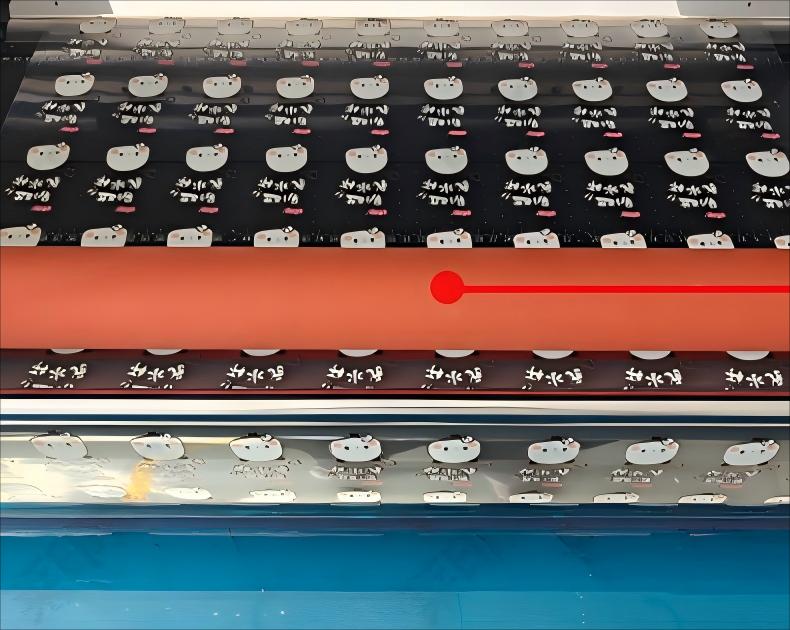

Electric film laminating function integrated, greatlyimprove printing efficiencyand save space

1-1920-1920

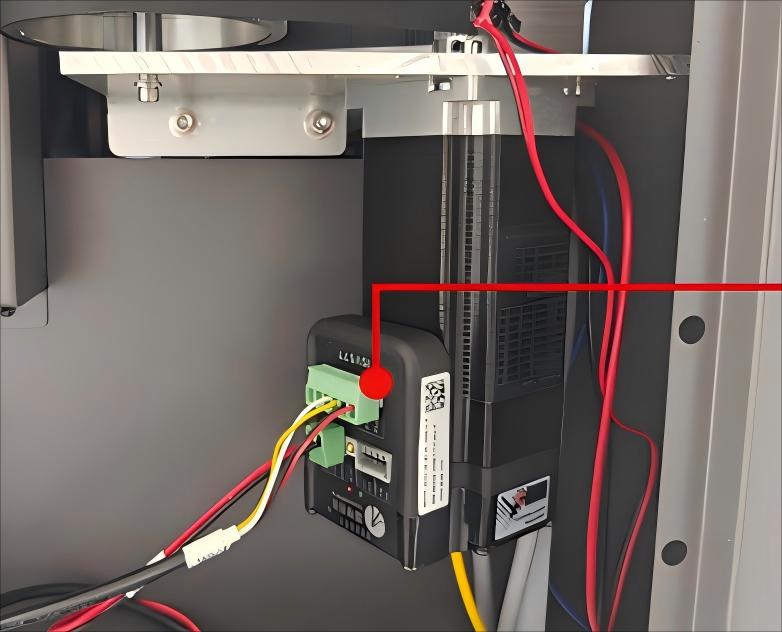

High-quality servo motors Ensure precise and stable printing performance.
