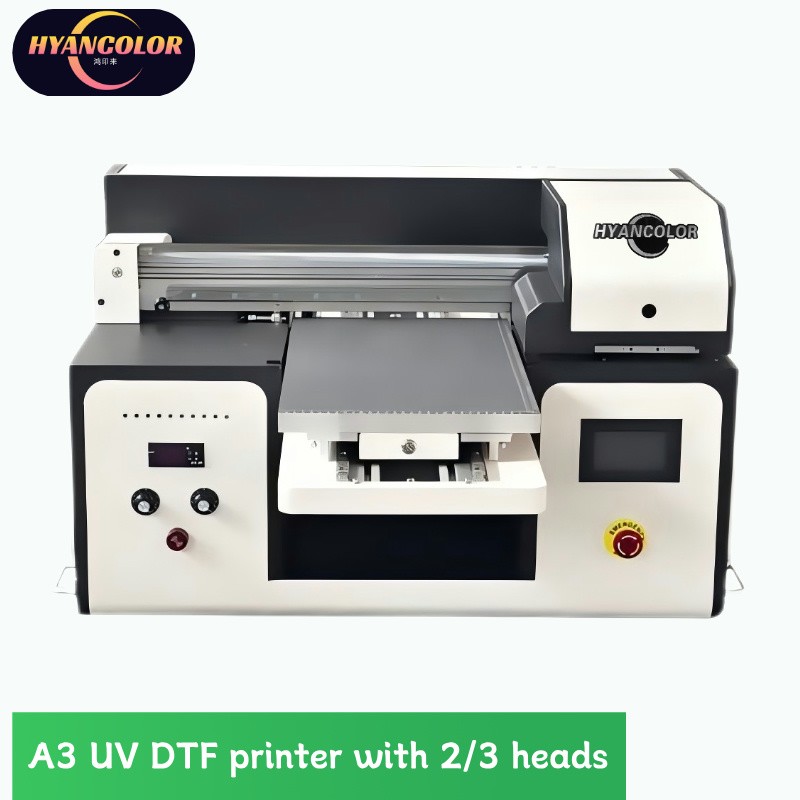

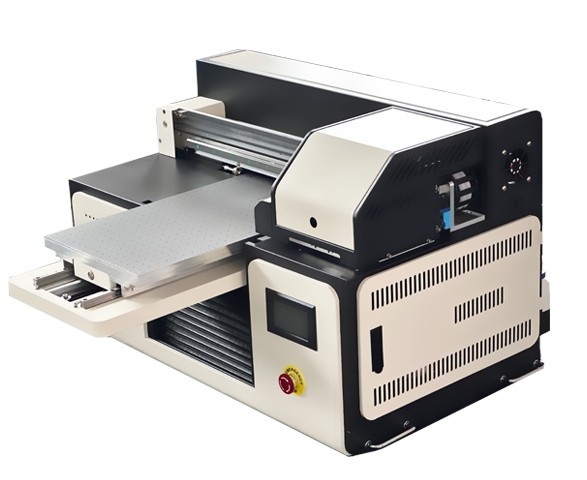

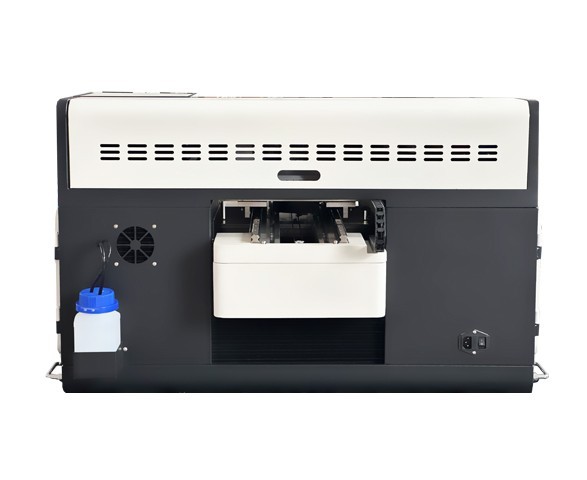

A3 HYL-E3502UV Flatbed DTF printer
- Product Item : HYL-E3502UV
- Category： UV Flatbed Printer/UV DTF Flatbed Printer
- Two Epson print heads
- Thickness : ≤180mm
- Printing Size : 350mm *550mm
- Ink color: CMYK+W+V
HYL-E3502UV Printer Specifications
| Model | HYL-E3502UV |
|---|---|
| Applicable Medium | Plastic, PVC, Acrylic, Glass, Ceramic, Metal, Wood, Leather, etc. |
| Printing Size | 300mm*500mm |

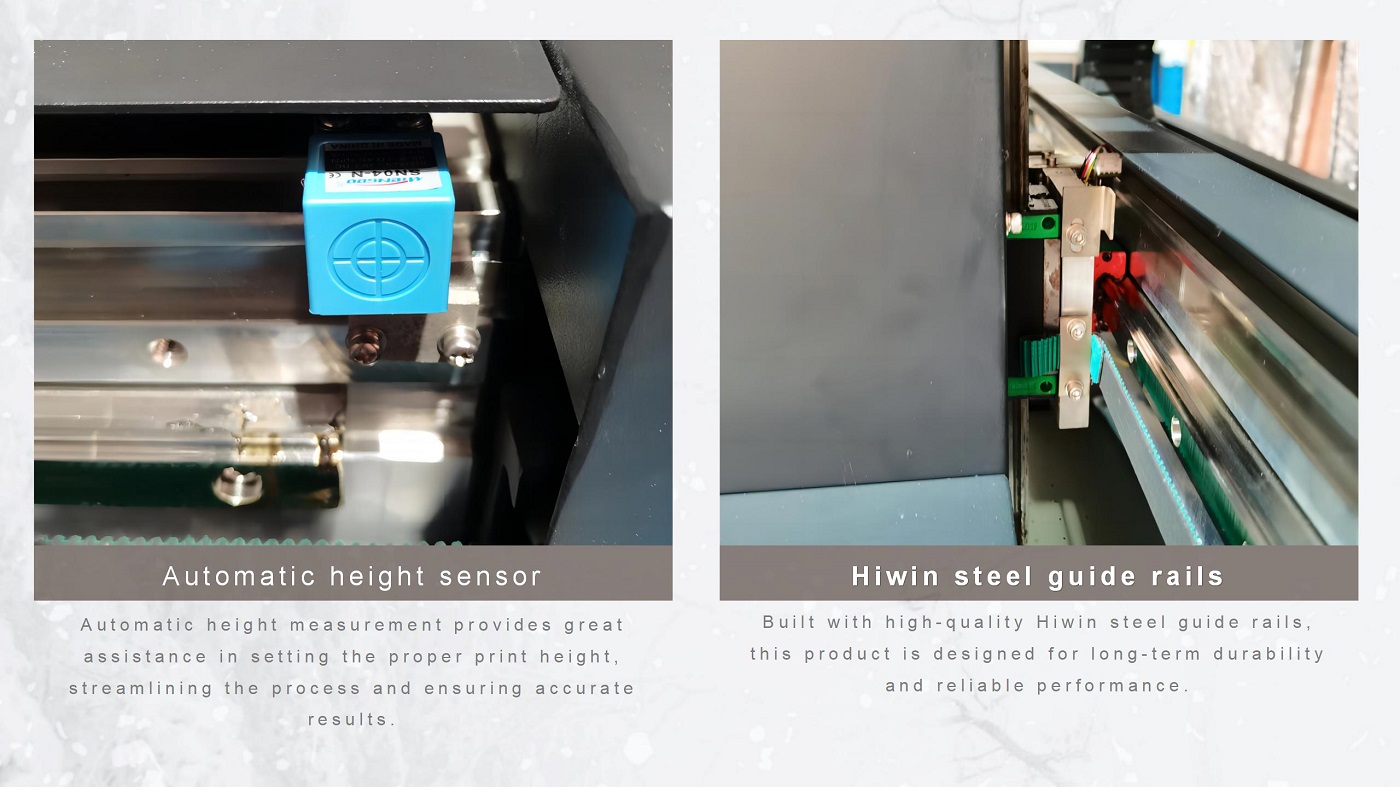

| Print Height | 20cm max with automatic height detect sensor |
| Printhead | 2 pieces Epson TX800/XP600/DX7/DX5/ i1600/i3200 head |
| Ink Cartridges | CISS (500ml per cartridge), CMYK+W+V |
| Printing Speed | 1-3 square meter per hour |

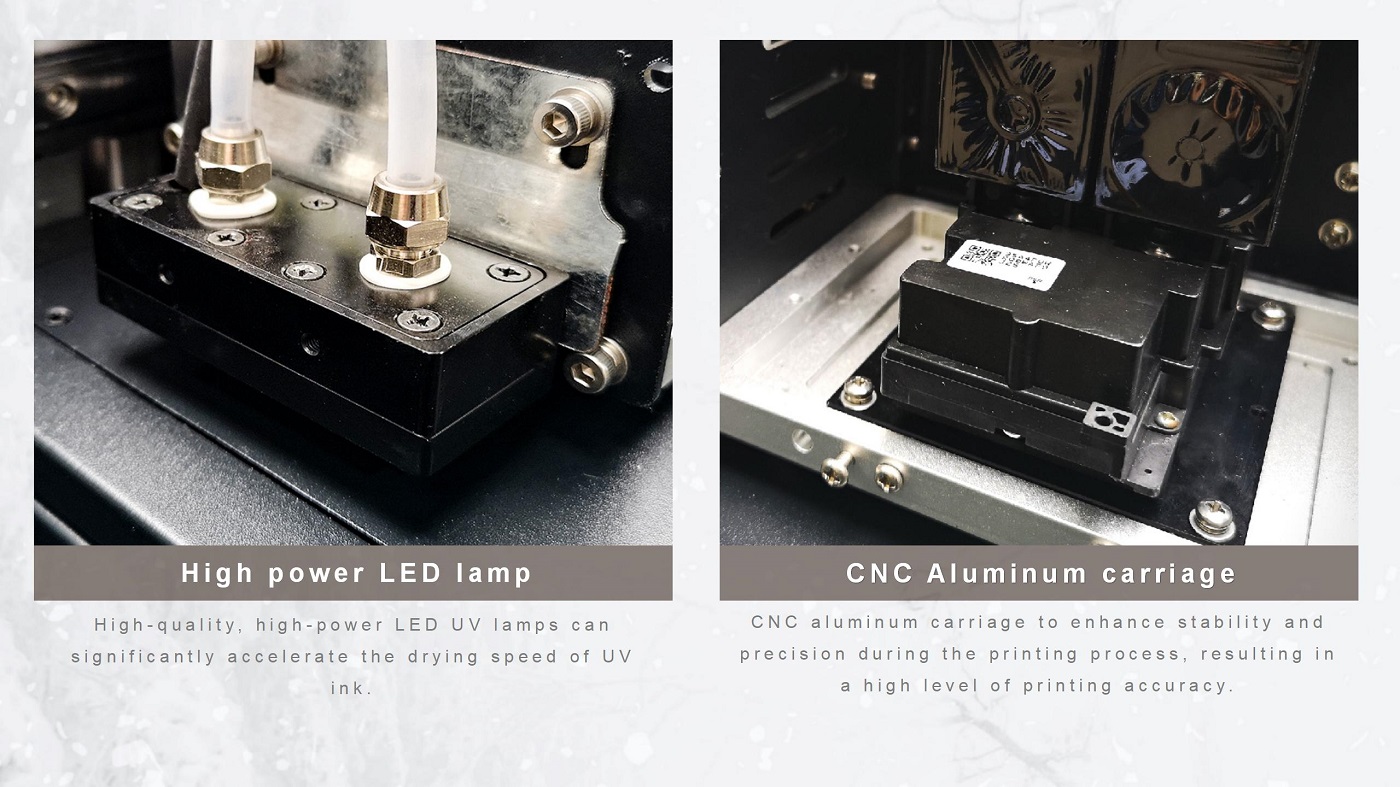

| Ink Curing Method | UV LED light |
| RIP Software | Maintop 6.1 or Photoprint 19 |
| Print Resolution | 720x1080 / 720x1440 / 720x2160 dpi |
| Cleaning System | Auto Cleaning System |
| Platform | Vacuum aluminium alloy table |
| Print Interface | USB3.0 |
| Operation Environment | Temperature: 20℃~32℃; Humidity: 35%~80% |
| Rated Power | 500W |
| Power Supply | 50Hz/60Hz, 220V(±10%)>1.7A |
| Machine Size | L1000*W900mm*H630mm / 80kg |
| Package Size | L1150*W960*H880mm / 115kg |
